VIO SERİSİ LINE ARRAY SİSTEMLERİ VE AKSESUARLARI

foto
1

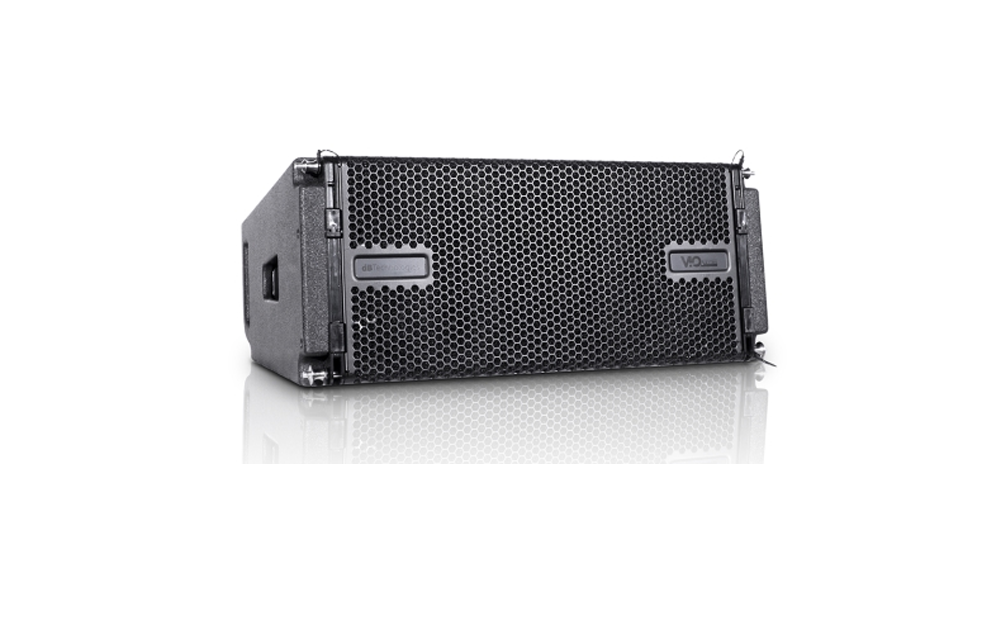

db Sound VIO L208

  • Active Line Array module, 2x8" NEO, 1x3" NEO Driver, 900 Watt RMS, Freq.(+/-3 dB)85-18.100 Hz, Max SPL:133,5 dB, WxHxD: 600x260x390mm, 18.1 Kg
foto
2

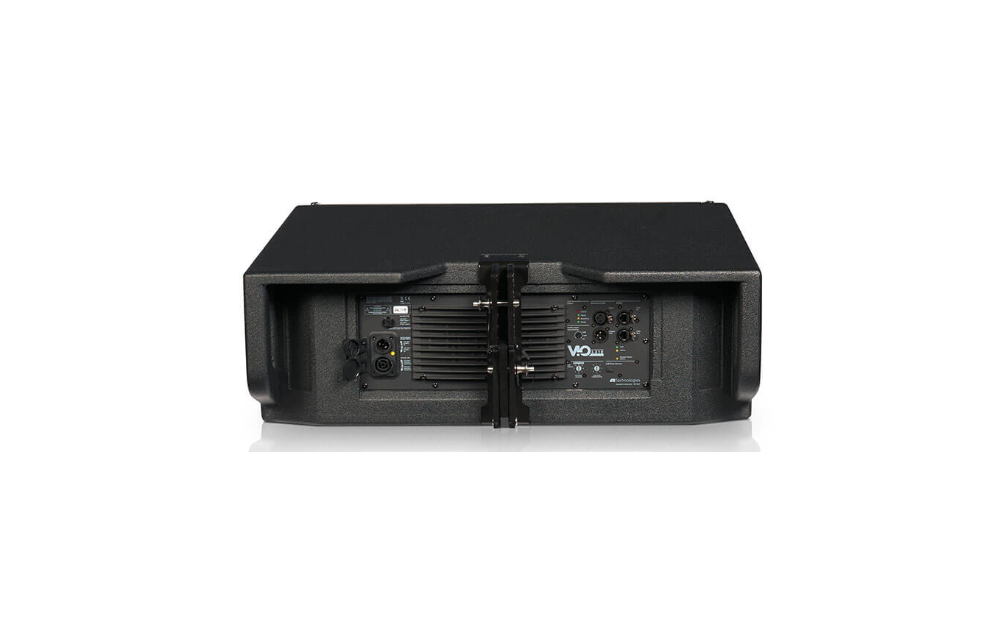

DB SOUND VIO L210

  • Active Line Array module, 2x10" NEO, 1x3" NEO Driver, 1000 Watt RMS, Freq.(+/-3 dB)78-18.100 Hz, Max SPL:135 dB, WxHxD: 720x320x520mm, 28.6 Kg
foto
3

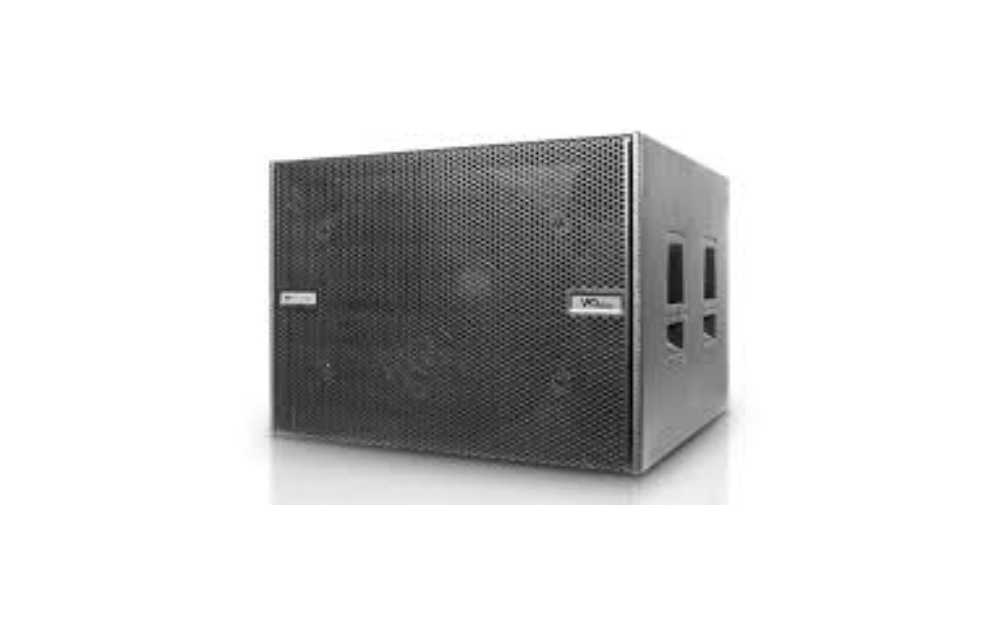

DB SOUND VIO S118

  • Active 18" Flyable Subwoofer, 1600Watt RMS, 3200 Peak Freq.(+6dB)36 Hz to Cut Freq, SPL:139 dB, WxHxD:720x520x695 , 45,1Kg
foto
4

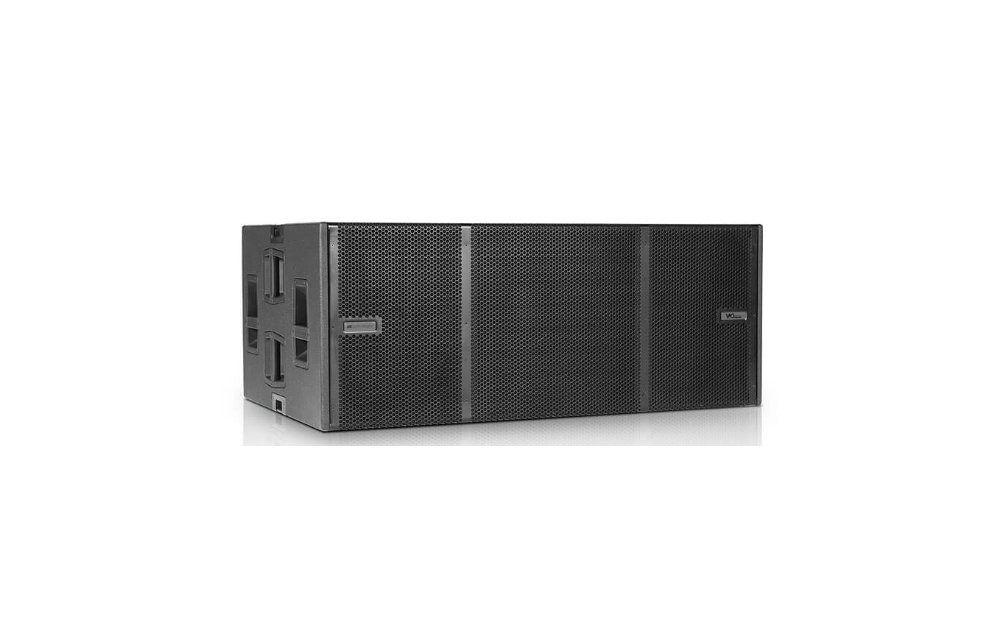

DB SOUND VIO S318

  • Active 3X18" Bassreflex Semi-Horn Loaded Subwoofer, 2700Watt RMS, 5400Watt Peak, Freq.(-6 dB) 39 - full range, Max SPL:143 dB ,WxHxD:1300x520x800 , 103,9Kg
foto
5

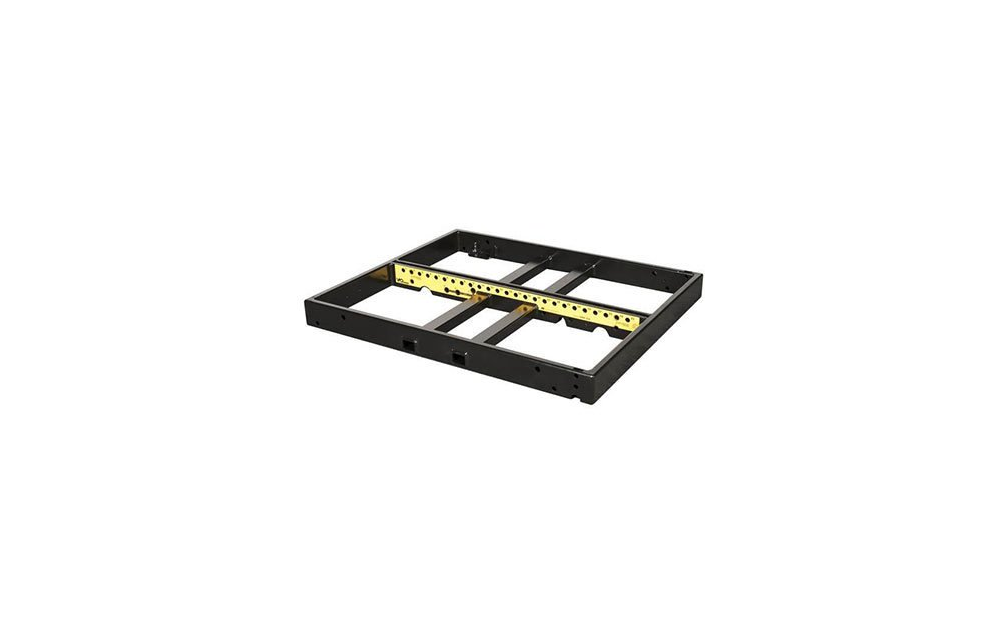

DB SOUND DRK 210

  • Flybar for VIO Series

DVA SERİSİ LINE ARRAY SİSTEMLERİ VE AKSESUARLARI

foto
6

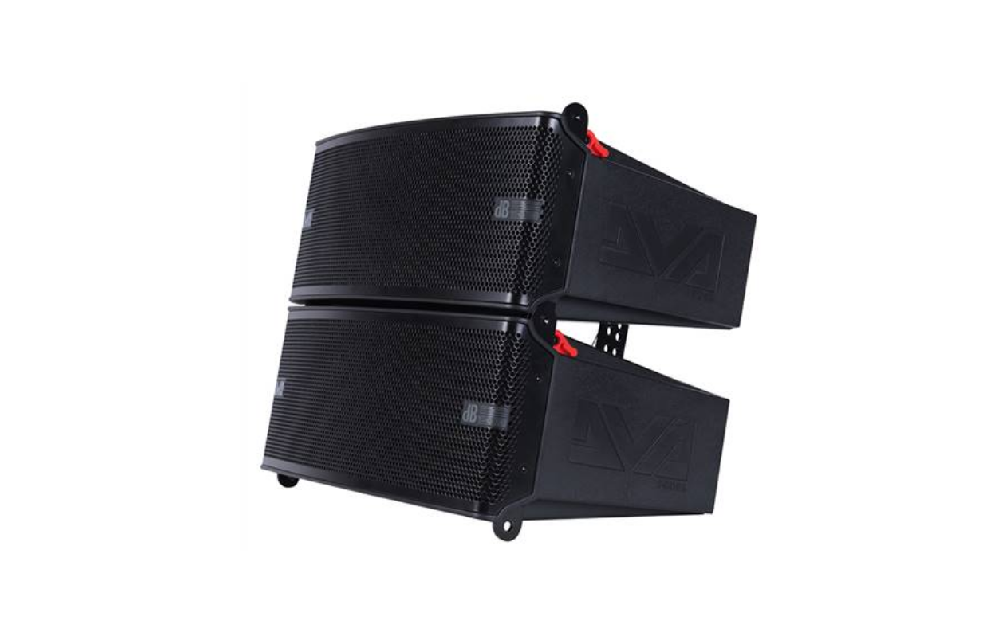

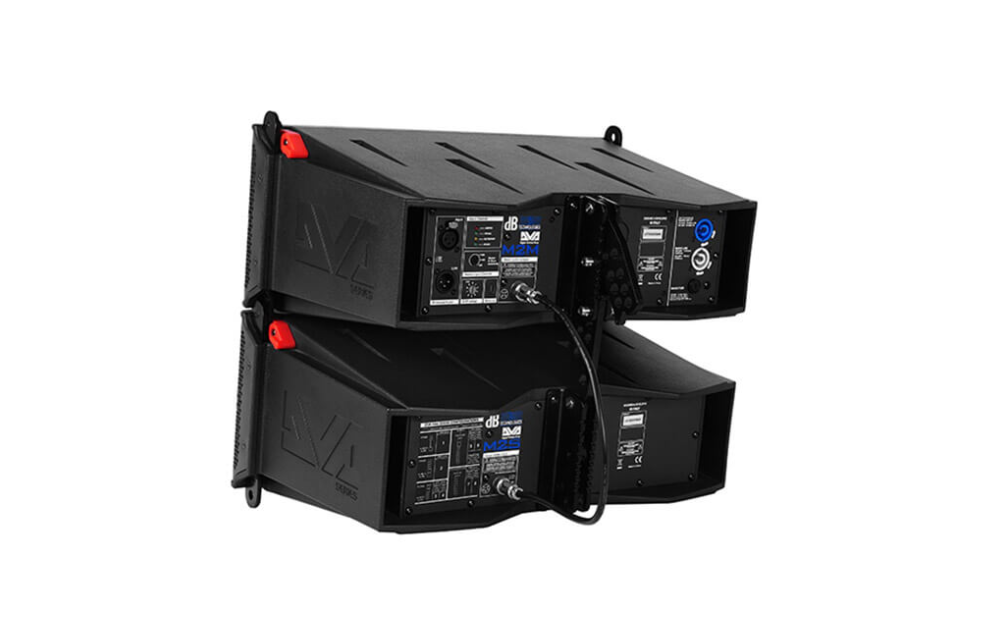

DB SOUND DVA M2M+DVA M2S

  • 2-Way Active Line Array System, LF: 2x6.5", HF: 2x1", 200 (M2M), + 200 (M2S) W / RMS,Freq.[-10dB]: 80 - 20.000 Hz, Max SPL:126 dB, WxHxD: 460x190x345mm,M2M: 7.6 kg, M2S: 7.1kg
foto
7

DB SOUND DVA M2P

  • 2-Way Passive Line Array System, LF: 2x6.5", HF: 2x1",150 W / RMS, Freq.[-10dB]: 68 - 20.000 Hz, Max SPL:126 dB, WxHxD: 460x190x345mm, 7.1 kg
foto
8

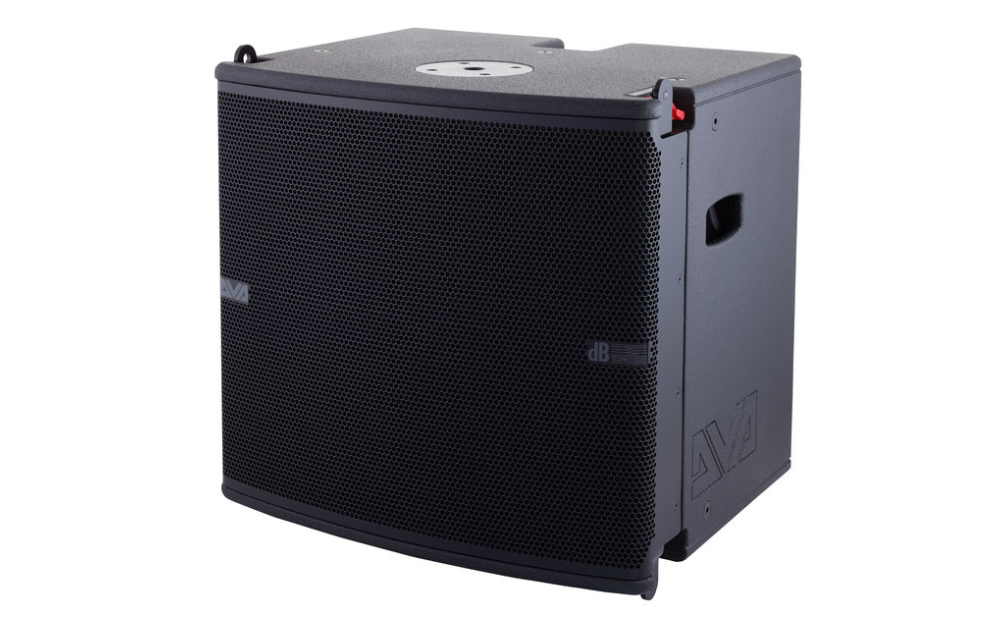

DB SOUND DVA MS12

  • Active Bass Reflex Flyable Subwoofer, LF: 12", 700 Watt RMS,Freq. [-10dB]: 40 - 165 Hz, Max SPL:131 dB, WxHxD: 460x430x385 mm, 26.5 kg
foto
9

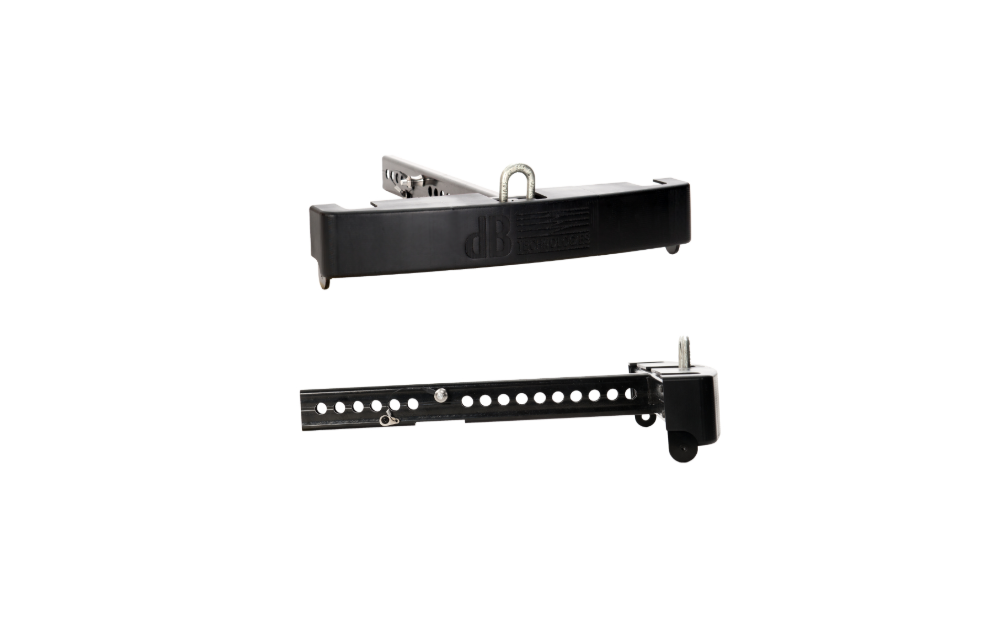

DB SOUND DRK M5

  • Fly bar for hanging up to 16x DVA Mini modules.
foto
10

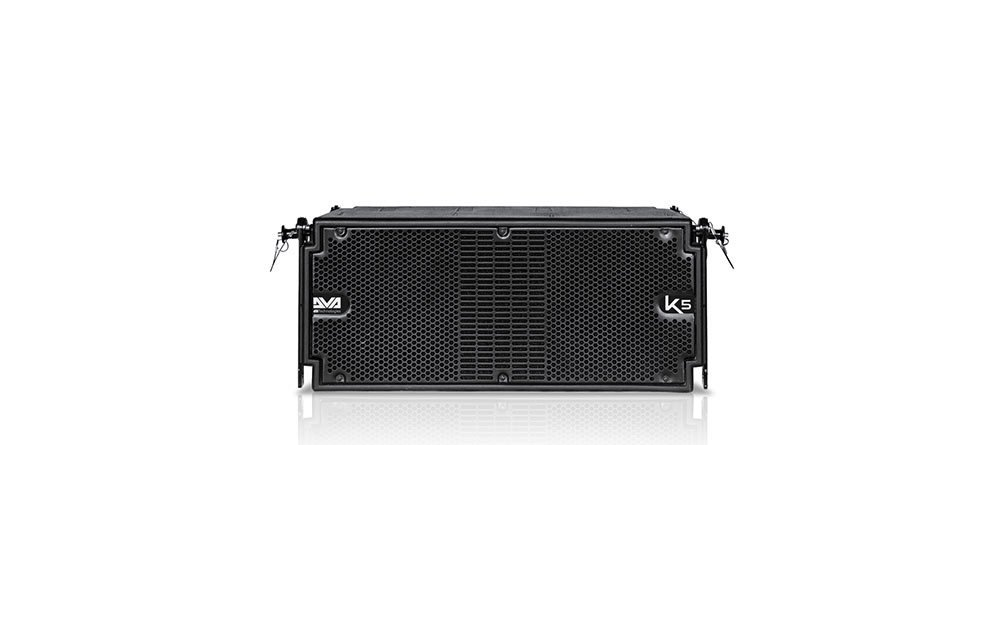

DB SOUND DVA K5

  • Active 3 Way Line Array module, HF 1x8",MF 6.5", HF 2x1", 500 Watt RMS, Freq.(+/-3dB), 70-19000 Hz, Max SPL:129 dB, WxHxD: 580x240x327mm, 14.7 Kg.
foto
11

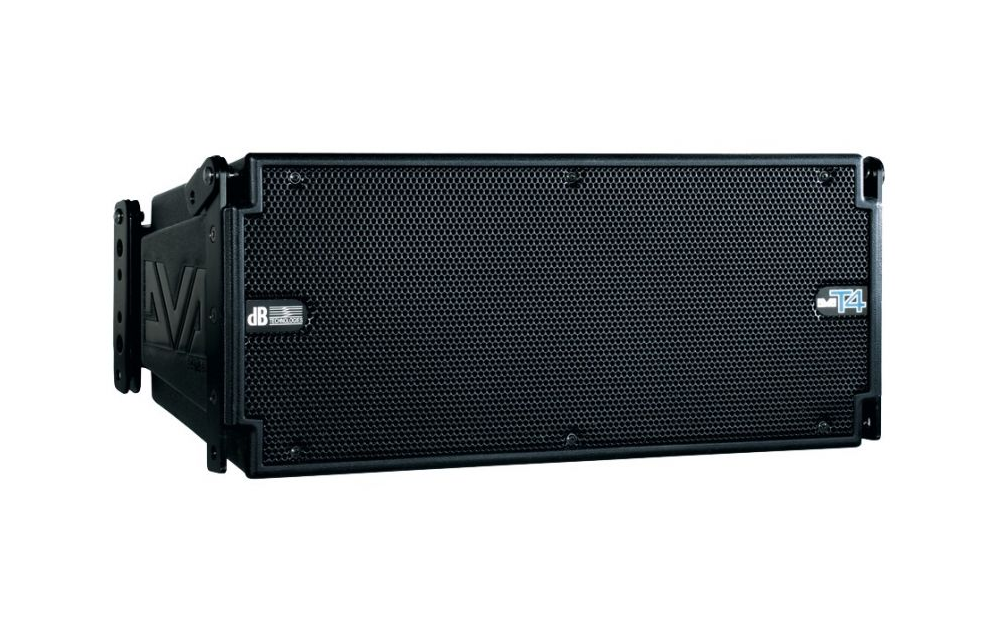

DB SOUND DVA T4

  • Active Line Array module, LF 8", MF 6.5", HF 2x1", 420 Watt RMS, Freq.(+/-3dB), 80-19000 Hz, Max SPL:128 dB, WxHxD: 580x240x327mm, 13.8 Kg.
foto
12

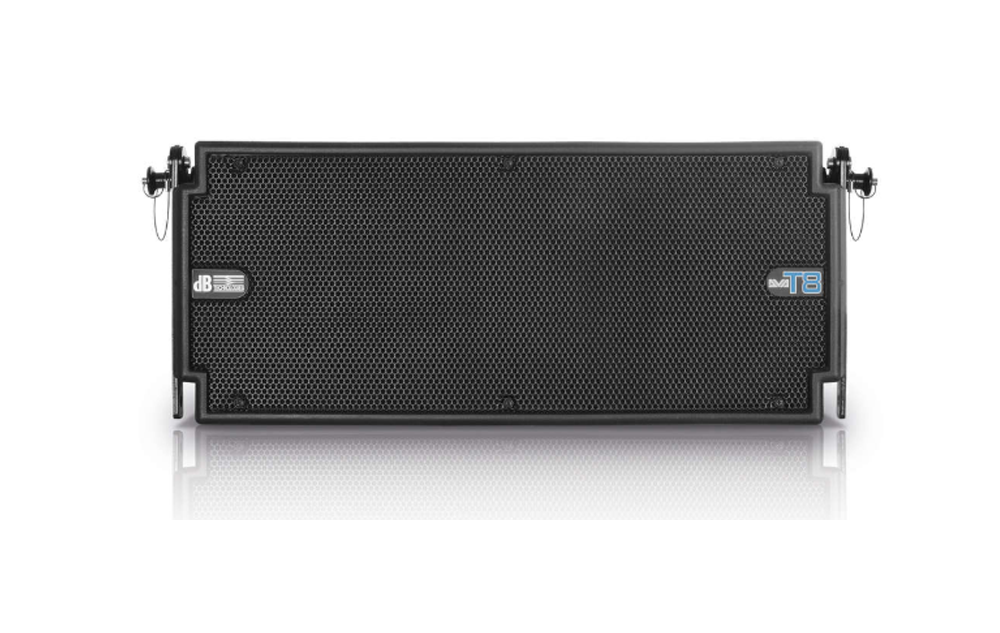

DB SOUND DVA T8

  • Active Line Array module, LF 8'', MF 1X6.5'', HF2X1'', 700 Watt RMS, Freq.(+/-3dB), 66-18000 Hz, MaxSPL:132 dB, WxHxD: 580x240x327mm, 14.2Kg
foto
13

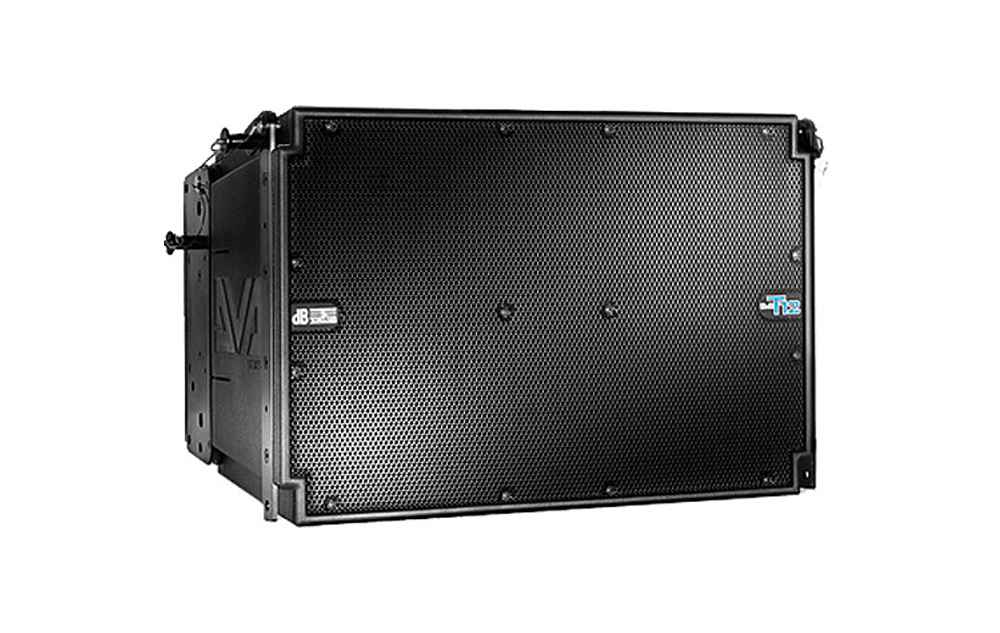

DB SOUND DVA T12

  • Active Line Array module, LF 12'', MF 2X6.5'', HF 3X1'', 1500 Watt RMS, Freq.(+/-3 dB)60-19000 Hz, Max SPL:136 dB, WxHxD: 580x386x430mm, 29.9 Kg
foto
14

DB SOUND DRK 10

  • Rigging-kit for up to 24xDVA T4 - K5
foto
15

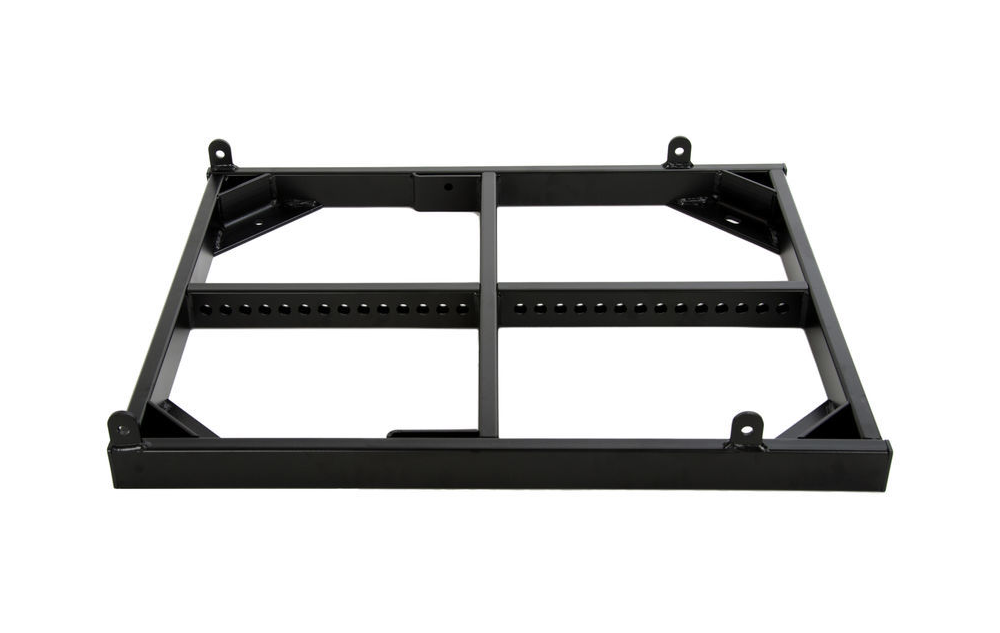

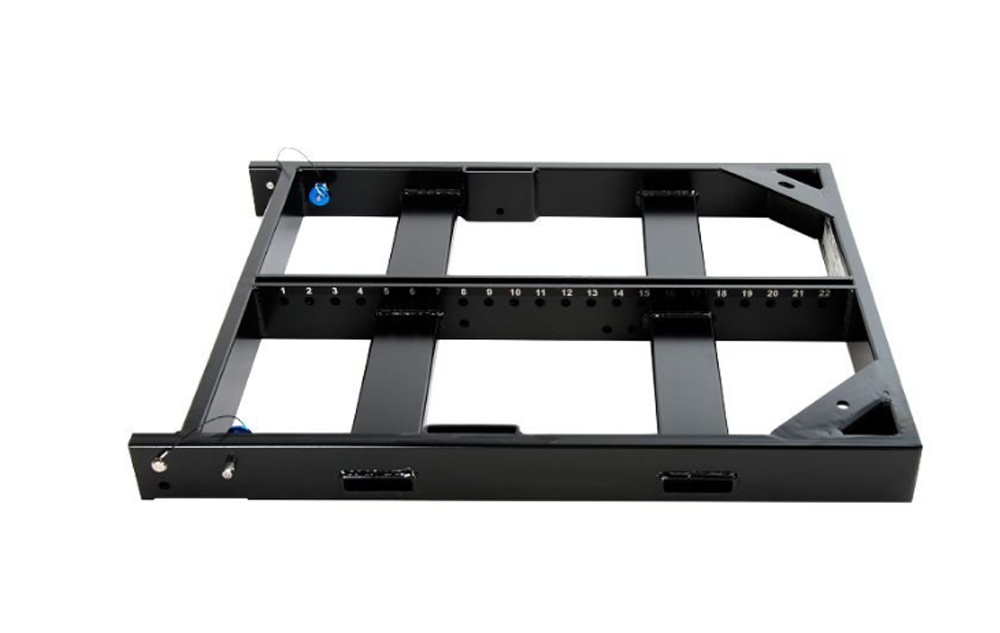

DB SOUND DRK 20

  • Fly frame for DVA for up to 24xDVA T12
foto
16

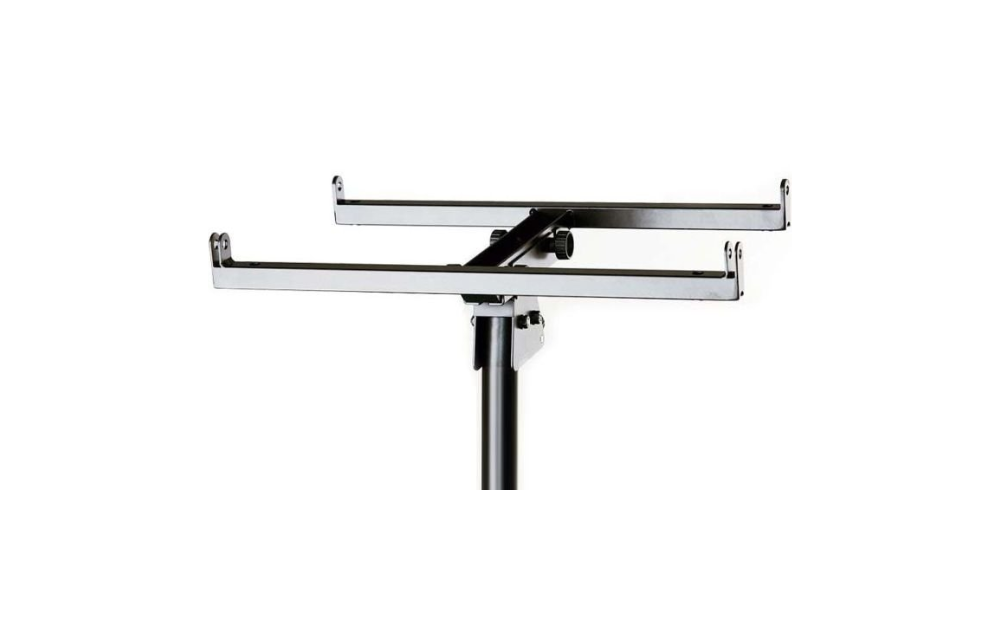

DB SOUND DSA 4

  • Adapter for up to 3x DVA T4 on a speaker stand/pole or floor use throungh int feet
foto
17

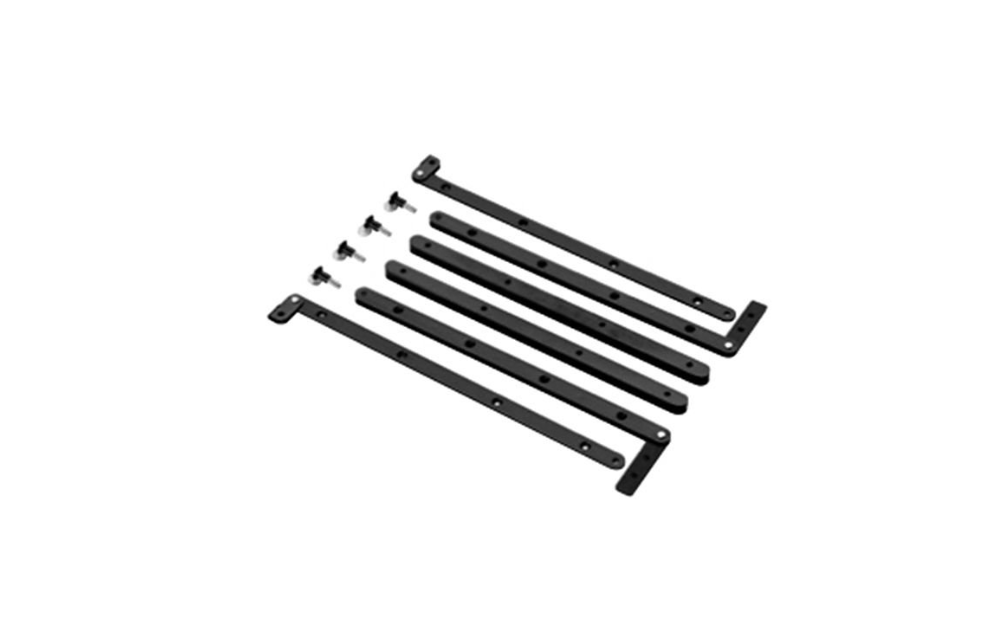

DB SOUND SRK 10

  • Flyhardware-set for DVA S10 for up to 2x s10 for/8x DVA T4 on DRK-10

DVA SERİSİ SUBWOOFERLAR

foto
18

DB SOUND SRK 10

  • Active Subwoofer, LF 12'', 800 Watt RMS, Freq.(+/-3dB)40-150 Hz, Max SPL:131 dB ,WxHxD:360x520x500 , 23Kg
foto
19

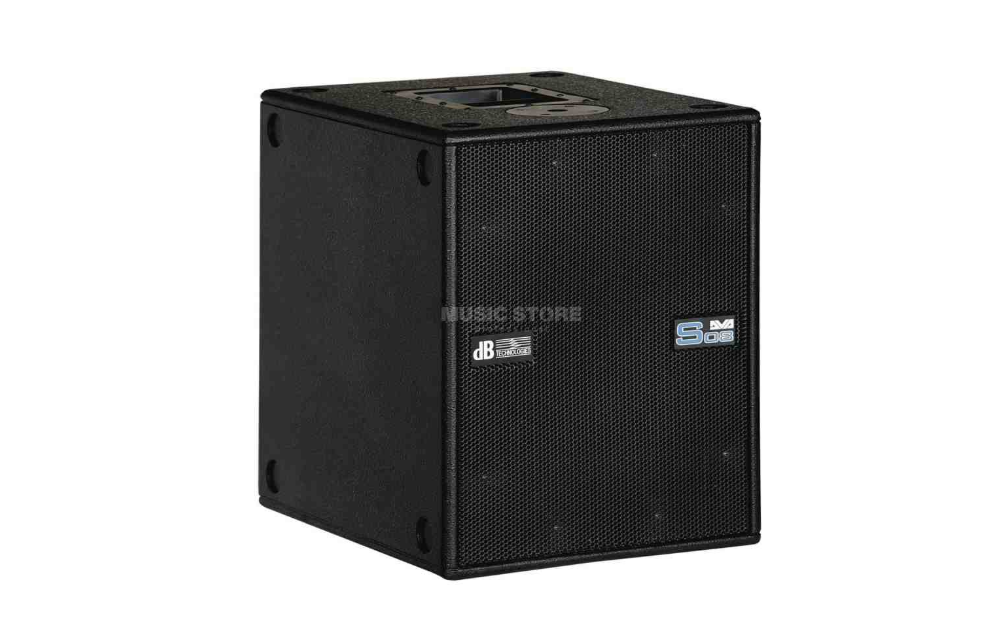

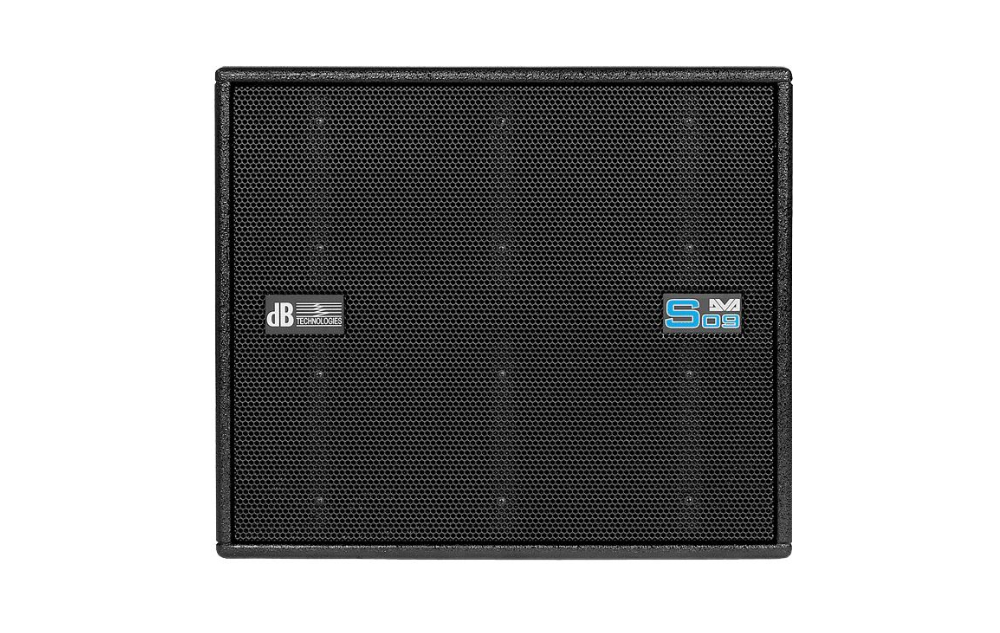

DB SOUND DVA S09 DP

  • Active Subwoofer, LF 12'', 800 Watt RMS, Freq.(+/-3dB)40-150 Hz, Max SPL:131 dB ,WxHxD:360x520x500 , 23Kg
foto
20

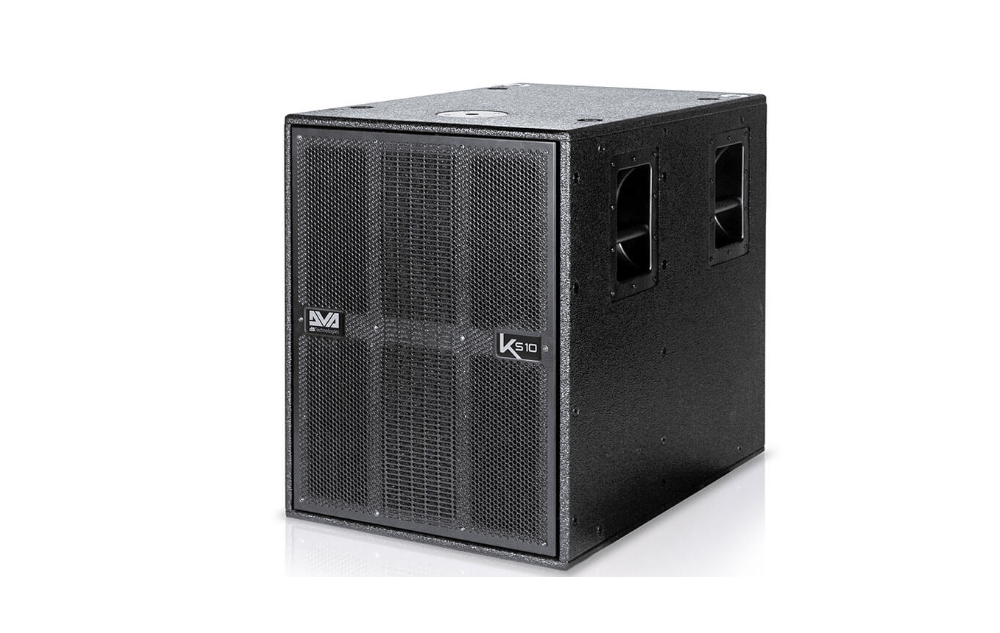

DB SOUND DVA KS10

  • Active Semi Horn Loaded Flyable Subwoofer, LF:18", 1000 Watt RMS, Freq.(+/-3dB)41-120 Hz, Max SPL134 dB, WxHxD : 515x640x720, 43,4Kg
foto
21

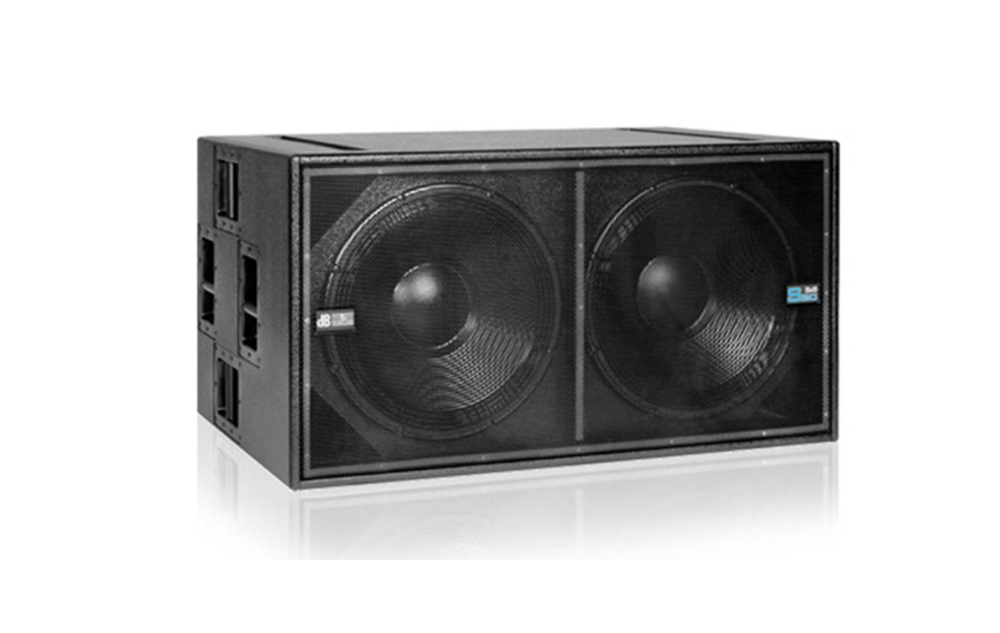

DB SOUND DVA S20 DP

  • Active Subwoofer, LF:2X18", 1000 Watt RMS, Freq.(+/-3dB)35-120 Hz, Max SPL :138 dB, WxHxD:1100x580x720, 84 Kg
foto
22

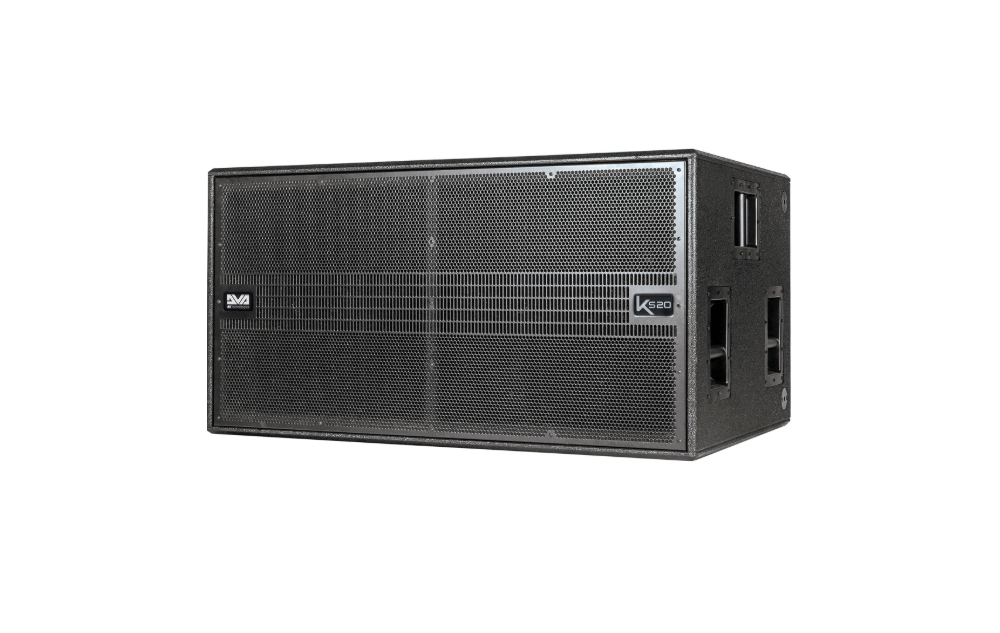

DB SOUND DVA KS20

  • Active Bassreflex Semi-horn loaded Subwoofer, LF: 2x18", 1800RMS, Freq.(+/-3dB)41-120 Hz, Max SPL138 dB, WxHxD : 1100x580x720, 84Kg
foto
23

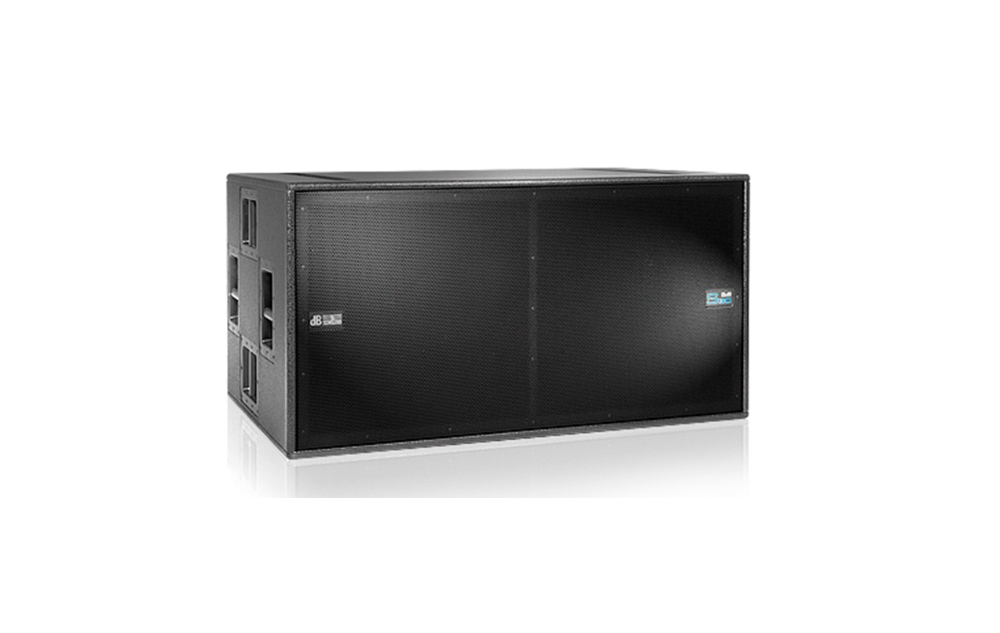

DB SOUND DVA S30

  • Active Subwoofer, LF:2x18", 3000 Watt RMS, Freq.(+/-3 dB)30-120 Hz, Max SPL:141 dB, WXHXD:1100X580X720 mm, 83 Kg
foto
24

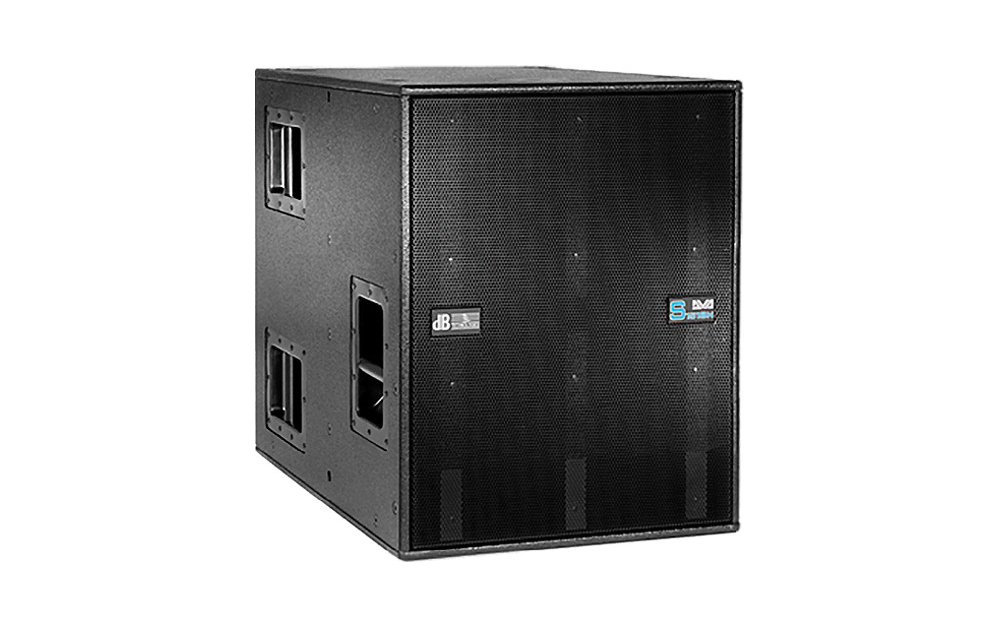

DB SOUND DVA S1518N

  • Active Subwoofer, LF:18", 1500 Watt RMS, Freq.(+/-3 dB)39-120 Hz, Max SPL:138 dB, WxHxD:515x640x720 mm, 46 Kg
foto
25

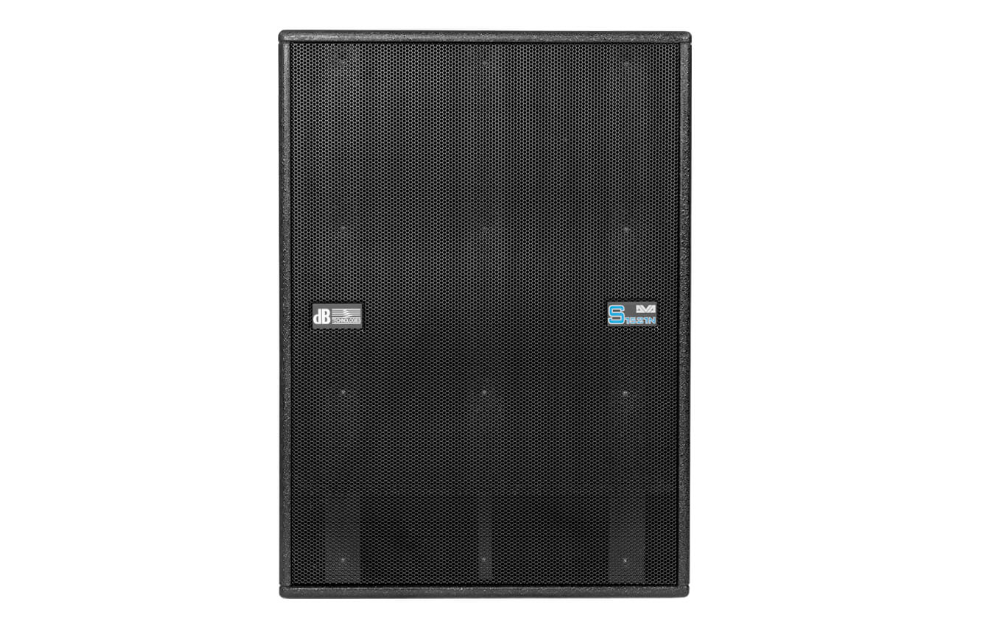

DB SOUND DVA S1521N

  • Active Subwoofer, LF:21", 1500 Watt RMS, Freq.(+/-3 dB)30-105 Hz,Max SPL:139 dB, WxHxD:580x800x720, 52.5 Kg
foto
26

DB SOUNDDVA S2585N

  • Active Subwoofer, LF:15"+18", 2500 Watt RMS Cardioid, Freq.(+/-3 dB) 35-120 Hz, Max SPL:140 dB , WxHxD: 515x640x1000, 65 Kg

IG SERİSİ DİKEY TİP HOPARLÖRLER

foto
27

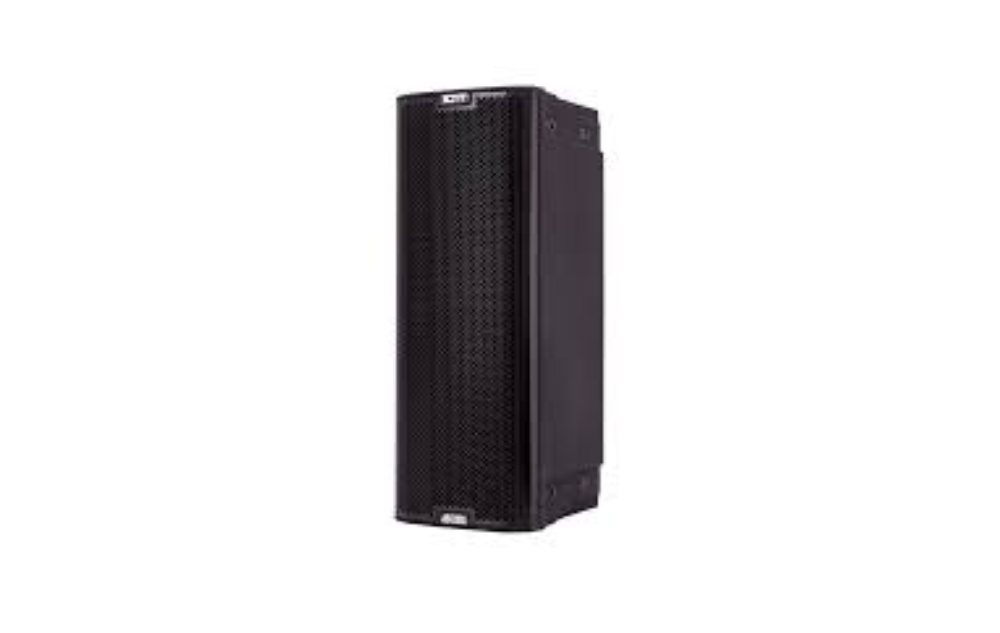

DB SOUNDDVA INGENIA IG1T

  • "2-way Active Speaker 2x6.5""/1"" 800W, Frequency Response [-10dB]: 85 - 20.000 Hz Frequency Response [-6dB]: 92 - 19.200 Hz Max SPL: 128 dB, WxHxD: 195x536x271 mm, 10.6 kg"
foto
28

DB SOUNDDVA INGENIA IG2T

  • "2-way Active Speaker 2x8""/1"" 800W, Frequency Response [-10dB]: 59- 20.000 Hz Frequency Response [-6dB]: 63- 19.200 Hz Max SPL: 128 dB, WxHxD: 228x646x315 mm, 12.8 kg"
foto
29

DB SOUNDDVA INGENIA IG3T

  • "2-way Active Speaker 2x10""/1.4"" 1800W, Frequency Response [-10dB]: 53 - 20.000 Hz Frequency Response [-6dB]: 57- 19.200 Hz Max SPL: 132 dB, WxHxD: 280x806x393 mm, 22.24 kg"
foto
30

DB SOUNDDVA INGENIA IG4T

  • "2-way Active Speaker 4x6.5""/1.4"" 1800W, Frequency Response [-10dB]: 74- 20.000 Hz Frequency Response [-6dB]: 88 - 19.200 Hz Max SPL: 132 dB, WxHxD: 195x956x271 mm, 18.2 kg"
